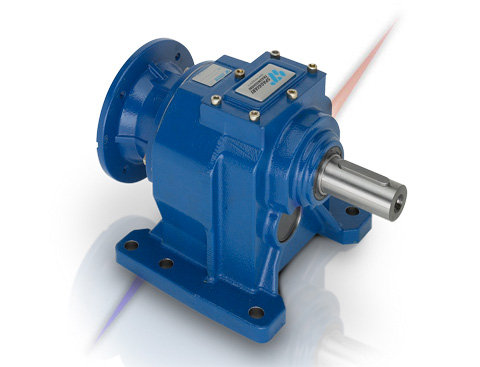

Motovario SH Helical Gear Reducers – Cast Iron
Sizes: 020-030-040-050-060-080-090-100-125-140. Available versions: SH – fitted for motor coupling, ISH – with input shaft, CSH – with compact motor, PSH – fitted for motor coupling with flexible joint. Cases with feet, flange or universal. Power up to 45 kW. Gears with shaved or ground profile. Gearing with 1, 2 and 3 reduction stages. Reduction ratios between 1,2 and 280. Torque max 8.000 Nm and admissible radial loads max 55.000 N. Cases in G200 grey cast iron for high strength and optimized with FEM analysis. Feet, flange or universal mounting. Excellent mechanical strength, particularly suitable to support high axial loads and high reliability. Load capacity calculated to ISO6336 and verified according to AGMA 2001-B88. Painted with RAL 5010 blue epoxy-polyester powder in according to DIN 1843.
