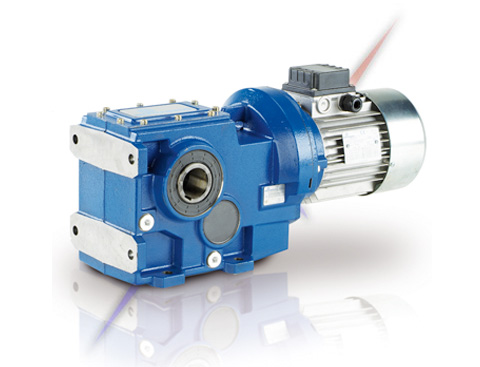

Motovario B Helical Bevel Gearboxes – Cast Iron

Sizes: 060-080-100-125-140-150-160. Available versions: B – fitted for motor coupling, IB – with input shaft, CB – with compact motor, PB – fitted for motor coupling with flexible joint. Cases with feet, flange or universal. Power up to 90 kW. Gears with shaved or ground profile. Gearing with 2 and 3 reduction stages. Gleason spiral bevel gear pairs with run-in profile, mounted as second reduction stage for a higher resistance. Reduction ratios between 5,7 and 187,24. Torque max 13.000 Nm and admissible radial loads max 65000 N. Cases in G200 grey cast iron for high strength and optimized with FEM analysis. Excellent mechanical strength. Load capacity calculated to ISO6336 and verified according to AGMA 2001-B88. Painted with RAL 5010 blue epoxy-polyester powder in according to DIN 1843. Accessories: torque arm, output flange, output shaft, shrink disk, backstop device, assembly/disassembly kit.
