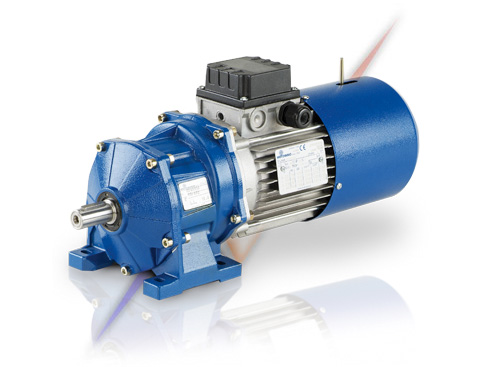

Motovario HA Helical Gearboxes – Aluminium

Sizes: A30-A40-A50-A60. Available versions: HA – fitted for motor coupling, IHA – with input shaft, CHA – with compact motor. Power up to 4,8 kW. Gears with shaved or ground profile. Gearing with 1, 2 and 3 reduction stages. Reduction ratios between 1,3 and 353,98. Torque max 500 Nm and admissible radial loads max 8000 N. Cases in die-cast aluminium alloy; feet, flange or universal mounting. Excellent mechanical strength while being and particularly lightweight. Load capacity calculated to ISO6336 and verified according to AGMA 2001-B88. Painted with RAL 5010 blue epoxy-polyester powder in according to DIN 1843.
